Digital to Analog
The DAC101 is a high performance digital to analog converter (DAC) designed to provide exceptional audio quality for discerning listeners. Utilizing R2R D/A conversion technology and innovative design concepts, the DAC101 delivers transparent sound with natural high resolution, ensuring an immersive listening experience.

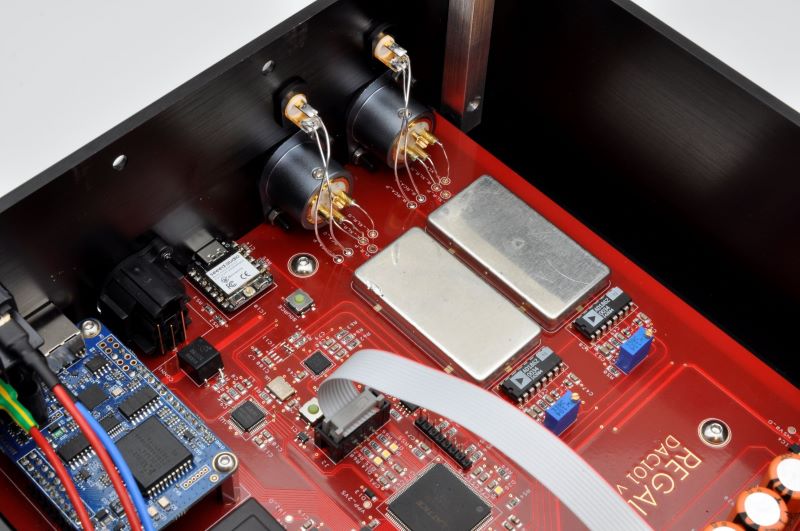

The DAC101 features R2R non-oversampling technology renowned for its musical qualities, thanks to its simplicity without digital filters or feedback loops. To address sensitivity to clock jitter, advanced reclocking techniques are employed. Additionally, class A output stages and patented Zero technology embedded in the circuit board contribute to authentic timbre and transparent sound reproduction.
Discover
Digital to Analog

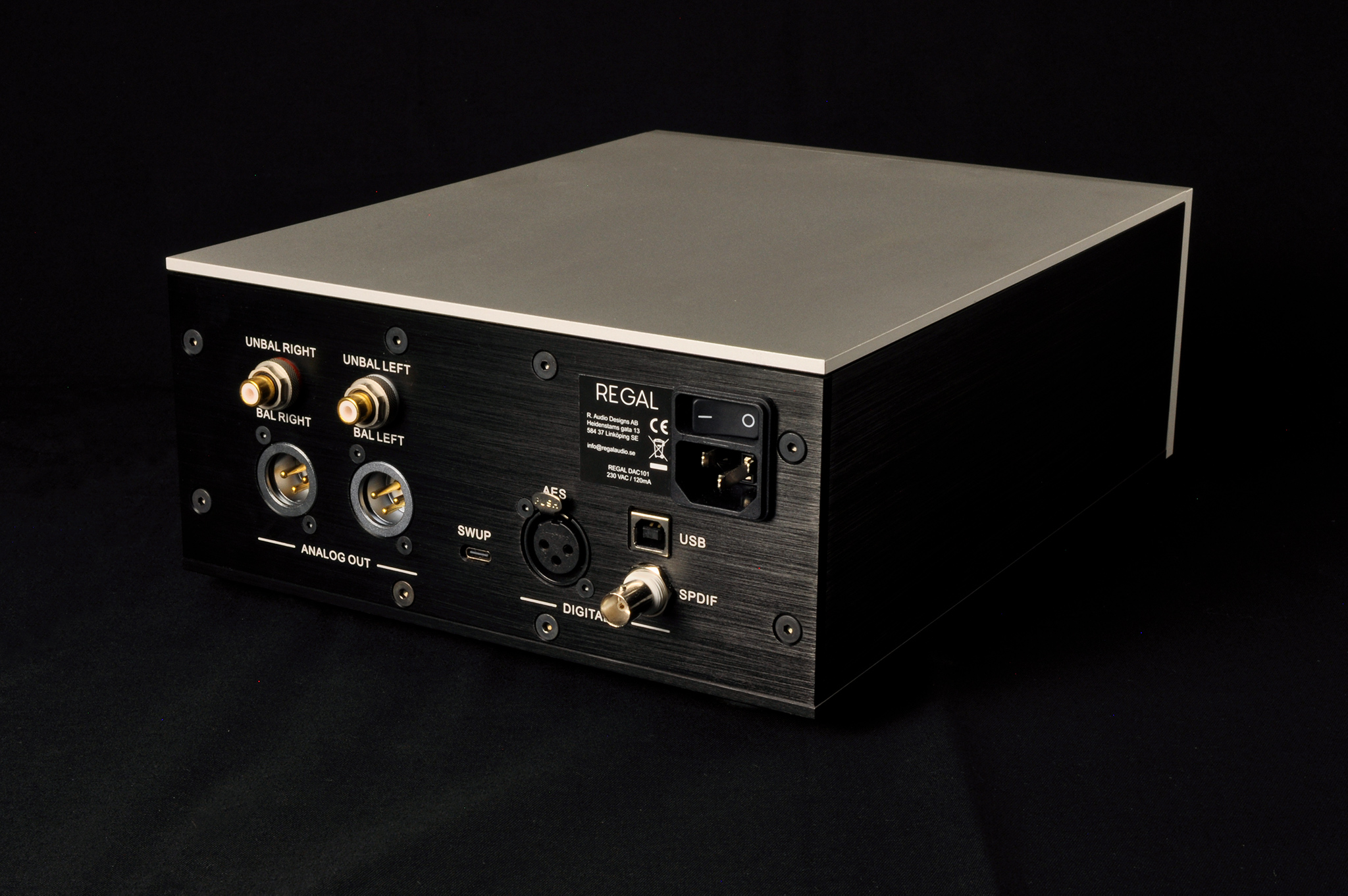

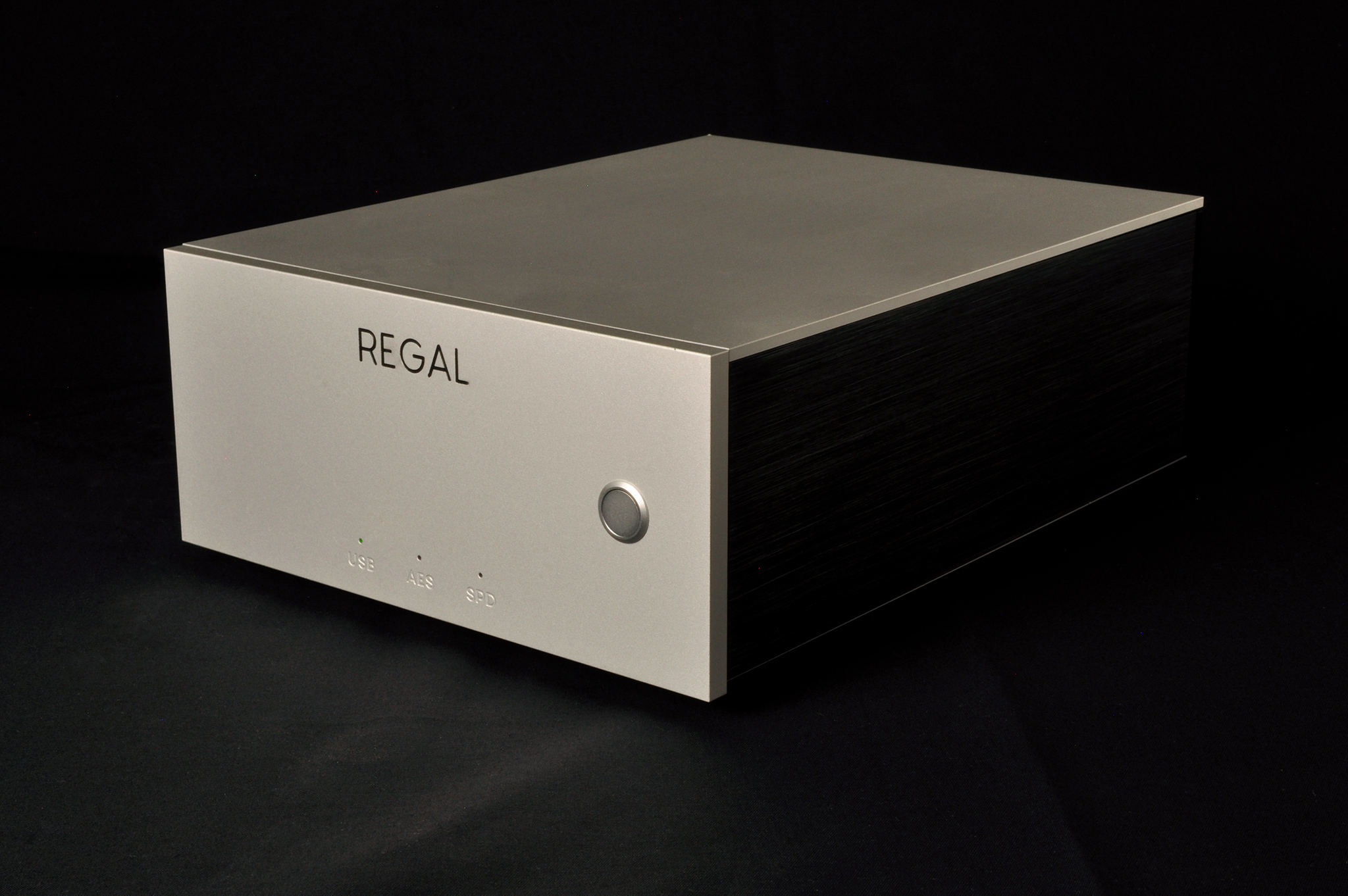

DAC101
- Comes in black or silver
- Supports 24 bit PCM audio up to 192 kHz on all digital interfaces.
- Advanced reclocking for ultra low jitter
- Dual R2R D/A converters for precise signal conversion.
- 20 bit D/A resolution with manually trimmed linearity for accurate audio reproduction.
- Supercapacitor direct power for the analog audio section, ensuring stable and consistent power delivery.
- Patented Zero loss technology integrated into the output stage for optimal sound quality.
- Separate transformers for digital/analog domains
Key Design Concepts
- Reclocking: Utilizes advanced PLL reclocking for ultra low jitter, ensuring precise signal synchronization.
- Low Loss Signal Path: Ensures minimal signal degradation for pristine audio quality.
- Class A Output Stage: Delivers high fidelity output with minimal distortion and coloration.
- Passive Analog Power Supply: Provides clean, stable power to the analog components for enhanced sound reproduction.
- Clean Design: Designed with listeners in mind, featuring a minimalist aesthetic.
